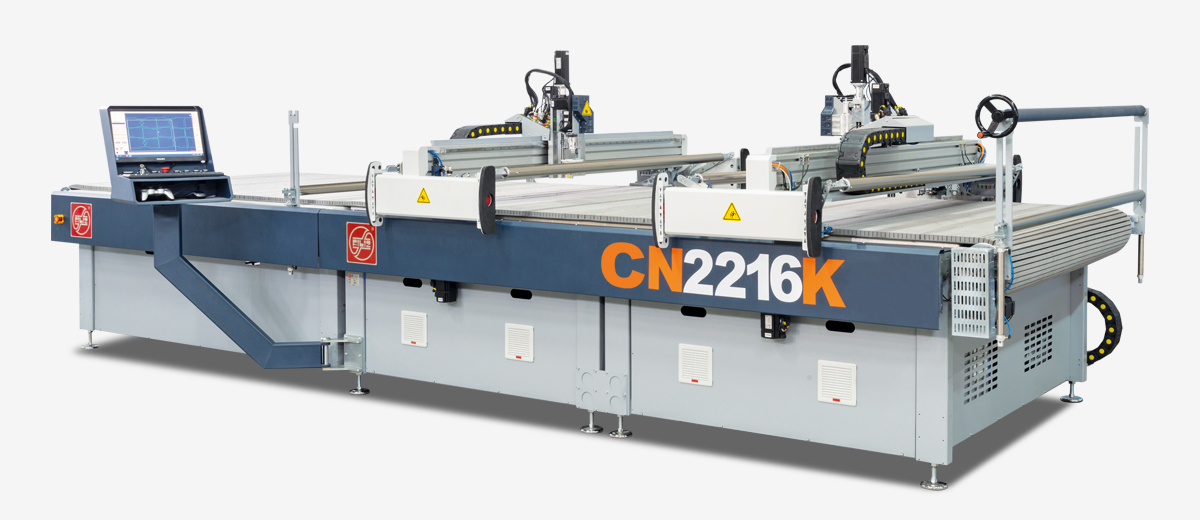

When cutting volume matters, Dual beams are perfect solution,
Impressive cost-benefit ratio for investors,
Impressive cost-benefit ratio for investors,
Cutting with super longlasting tungsten carbide knives,
Optional knife sharpening system for hard materials cutting,
Fabrics, non-wovens, natural and artificial leathers, carbonfiber, glassfiber and composites, aramide, foams, membrane, upholstery and furniture materials, all can be cut professionally with new technology patented underlay and cutting head tools.
CN Series Specifications
Up to 5 cm multilayers cutting under vacuum. (fabrics) (8 cm. optional)
Up to 9 cm single blok or multilayered foam cuttings. (density matters) (12 cm. optional)
Modular tooling system. Exchangeable tools and tool base.
Up to 1.5 mt/sec (90 mt/min) positioning speed and 90 cm/sec. cutting speeds.
CH Series Specifications
Up to 2.5 cm multilayers cutting under vacuum. (fabrics)
Up to 5 cm single blok or multilayered foam cuttings. (density matters)
Modular tooling system. Exchangeable tools and tool base.
Up to 2 mt/sec (120 mt/min) positioning speed and 120 cm/sec. cutting speeds.
CN / CH Series Common Specifications
All world data types can be accessed for cut files input to the system. (dxf, ISO, HPGL and user defined etc.)
High pressure and flowrated vacuum pumps.
0 / +40 Celcius working temperature.
% 40 working humidity.
6 bar required air pressure.
Can be operated 7/24.
Optional camera scanning or projection interactive nesting equipment (for natural leather, printed materials).

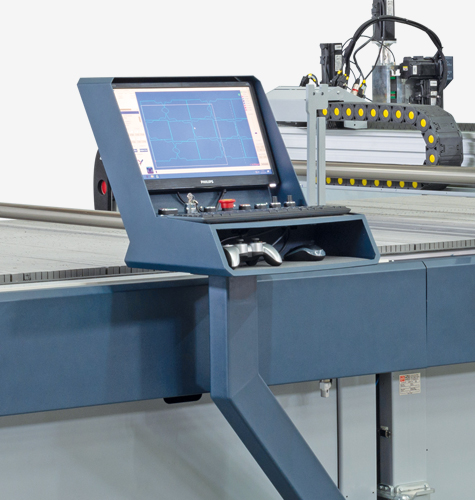

Optional Interactive scanning, nesting and marking with digital pen or mouse.
Optional Multi Roll hang device with brakes.
Optional Single roll feeder cradle with edge controling.
Optional sheet material feeder with sucking nozzles.
